Laptop Cooling Pads · Comparison

The llano V12 Ultra meets
the KLIM Ultimate

The sealed-turbofan design that cooled best in TechRadar's tests, with software-controlled fan curves. We tested it head-to-head against the KLIM Ultimate across 6 key dimensions.

llano V12 Ultra cooling pad with laptop elevated and software control UI visible on screen
BEST

llano V12 Ultra

“The sealed-turbofan design that cooled best in TechRadar's tests, with software-controlled fan curves”

$159.99MSRP
Our Score
77.3 / 100
KLIM Ultimate RGB laptop cooling pad top view, with its single 200 mm fan glowing blue behind the metal mesh grid and a rainbow RGB LED rim
VALUE

KLIM Ultimate

“The quietest pad TechRadar measured, still halving the heat rise, with a 5-year warranty”

$69.97MSRP
Our Score
74.1 / 100
01

Head-to-Head Breakdown

Cooling
40% of score +
llano
95
KLIM
68
llano V12 Ultra

Tech Closet's FurMark run on an Acer Nitro 5 showed 20°C CPU and GPU drops at full speed and more than 10°C at 300 rpm. Salem Techsperts watched a ThinkPad P1 Gen 6 fall from 98°C to 72°C in AIDA64. TechRadar's 3DMark test of the V12 RGB, which uses the same 5.5-in fan, held the laptop's temperature rise to 8°C against 31.9°C unaided, the best of 10 pads.

KLIM Ultimate

TechRadar's Josh Russell ran a 15-minute 3DMark Steel Nomad test on an Acer Predator Helios 300: the laptop's temperature rose 15.5°C on the Ultimate against 31.9°C unaided. The sealed llano turbo pads held it to 8 to 12°C.

Noise
10% of score +
llano
48
KLIM
95
llano V12 Ultra

llano rates it at about 70 dB at full speed and about 27 dB at its lowest setting, and the software's quieter modes trade some cooling for less noise. TechRadar measured the V12 RGB at 71 dB at head height.

KLIM Ultimate

36 dB at head height and 46 dB up close, the quietest of the 10 pads TechRadar measured.

Ergonomics
15% of score +
llano
80
KLIM
72
llano V12 Ultra

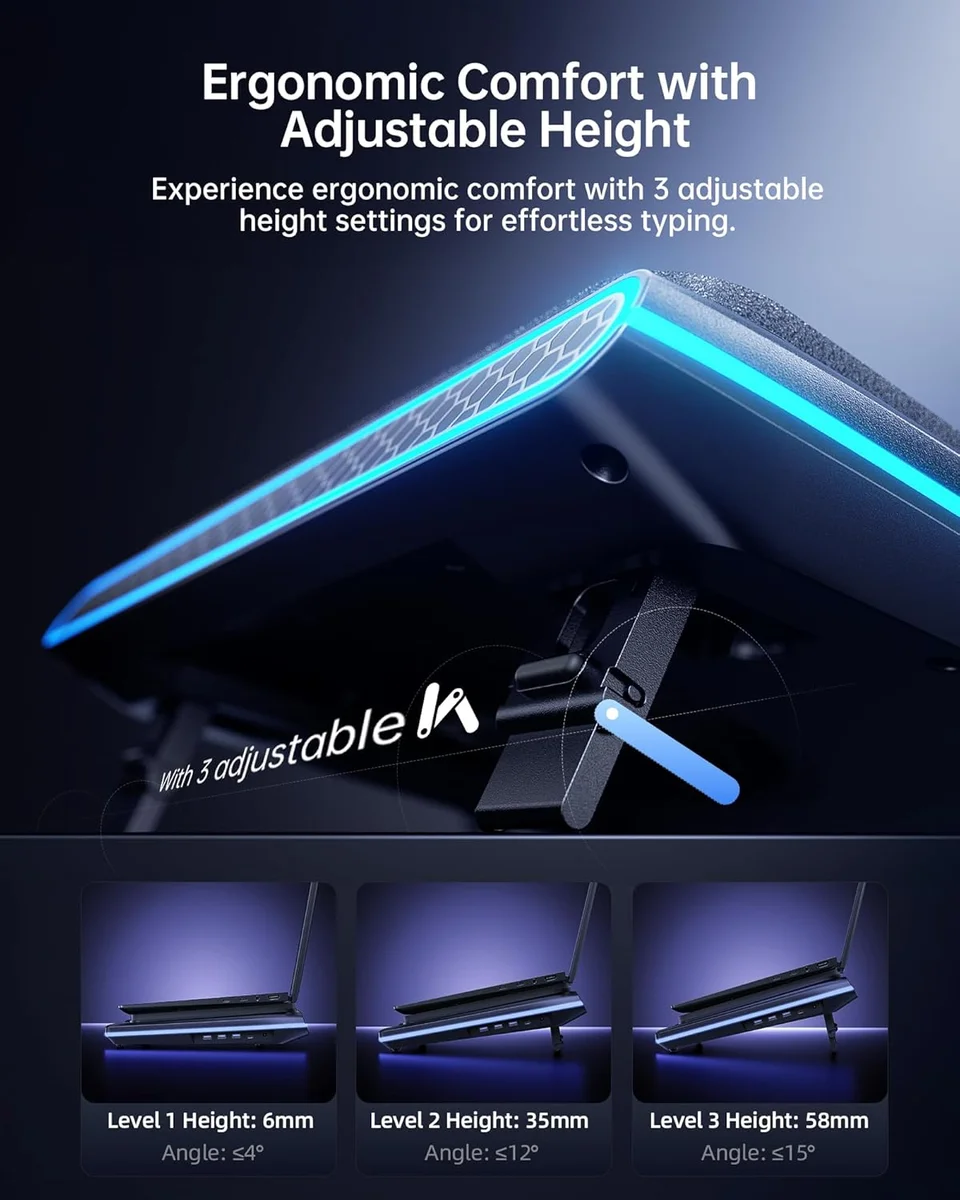

Three tilt settings (3, 12 and 15 degrees) and support for 15.6 to 19-in laptops, plus three USB 3.0 ports. Tech Closet found the legs lack rubber grips, so it slides on smooth desks.

KLIM Ultimate

Four height settings. KLIM sizes it for 17-in laptops and says it stays stable up to 19 in.

Build
15% of score +
llano
80
KLIM
72
llano V12 Ultra

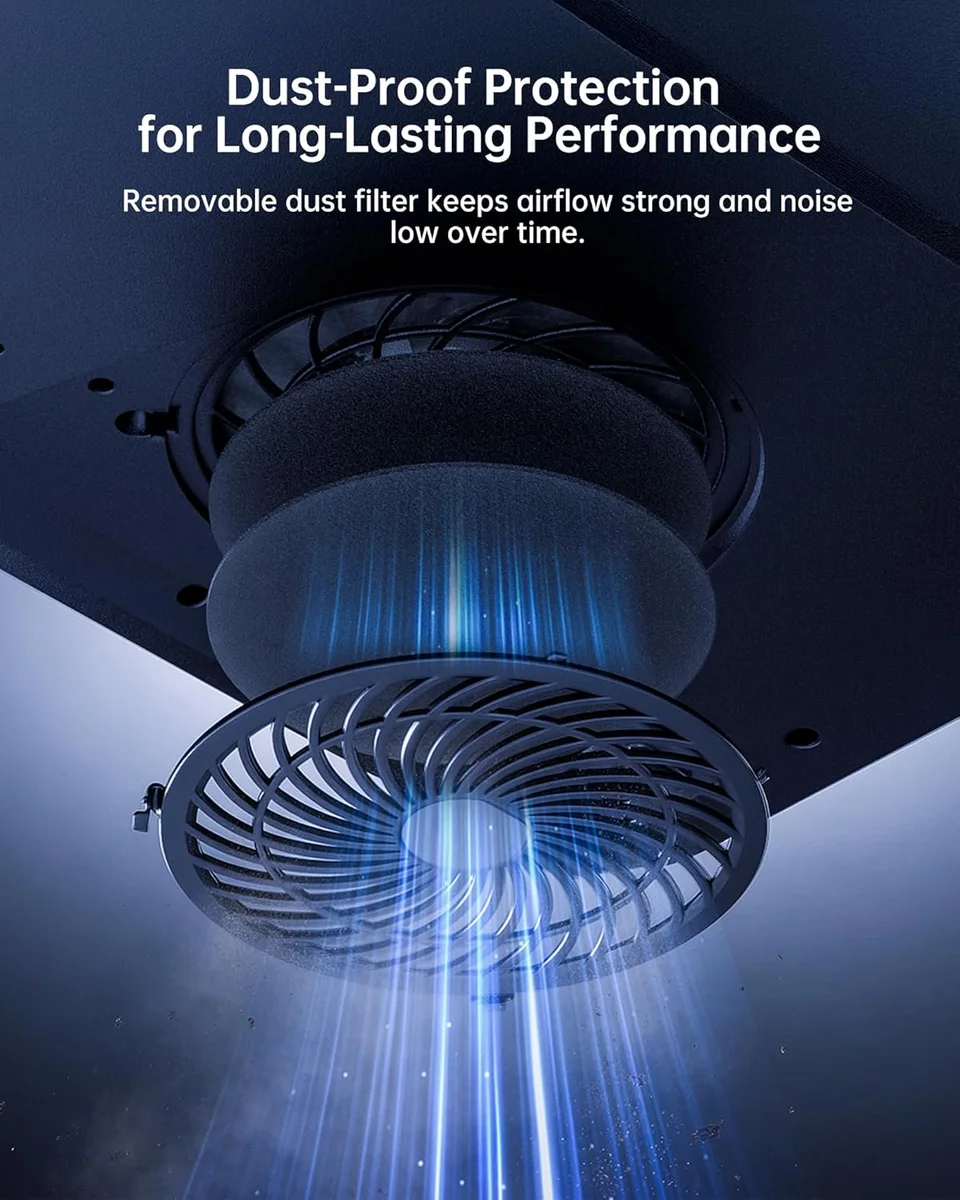

Salem Techsperts roughed it up on camera without damage. A memory-foam seal and a removable dust filter guard the laptop's intakes.

KLIM Ultimate

A metal grid over a single 200 mm fan, ringed with RGB lighting. KLIM backs it for five years.

Portability
10% of score +
llano
35
KLIM
72
llano V12 Ultra

At 4 lb and 16.9 x 12.9 x 2.7 in, with a 36 W power adapter, it lives on the desk.

KLIM Ultimate

2.16 lb, 1.69 in thick and powered over USB, with no adapter to pack.

Trust
10% of score +
llano
70
KLIM
86
llano V12 Ultra

llano sells it through its own store and on Amazon, where 719 ratings average 4.5 stars. Its store lists a 1-year warranty.

KLIM Ultimate

KLIM's 5-year warranty is the longest in our lineup, and 6,158 Amazon ratings average 4.4 stars. A third-party seller holds the Amazon buy box.

02

Strengths & Weaknesses

llano V12 Ultra

+ Strengths
  • Tech Closet measured 20°C CPU and GPU drops in FurMark, and more than 10°C even at the lowest fan speed
  • TechRadar's tests put llano's V12 RGB, which shares its 5.5-inch, 2,800 rpm turbofan, first of 10 pads for cooling
  • Myth.cool software reads CPU and GPU temperatures and sets the fan curve, and three USB 3.0 ports make it a hub
− Weaknesses
  • Rated at about 70 dB at full speed, and TechRadar measured its V12 sibling at 71 dB at head height
  • Needs its own 36 W power adapter and weighs 4 lb, so it stays on the desk
  • Tech Closet found the legs lack rubber grips, and llano's own store lists only a 1-year warranty
Key flaw: At maximum 2800 RPM, the fan hits 70 dB.

KLIM Ultimate

+ Strengths
  • Measured at 36 dB at head height in TechRadar's test, the quietest of the 10 pads it tried
  • Held the laptop's temperature rise to 15.5°C against 31.9°C with no pad in TechRadar's 3DMark run
  • A 5-year warranty, four height settings and USB power in a 2.16 lb pad
− Weaknesses
  • Cools less than the sealed llano turbo pads, which held the rise to 8 to 12°C in the same test
  • Its single 200 mm fan tops out at 750 rpm, so there's no turbo mode for heavy rendering
  • Sized for 17-inch laptops, and KLIM's listing mentions no USB pass-through port
Key flaw: It cools less than a sealed turbo pad.
03

The Verdict

Our Bottom Line

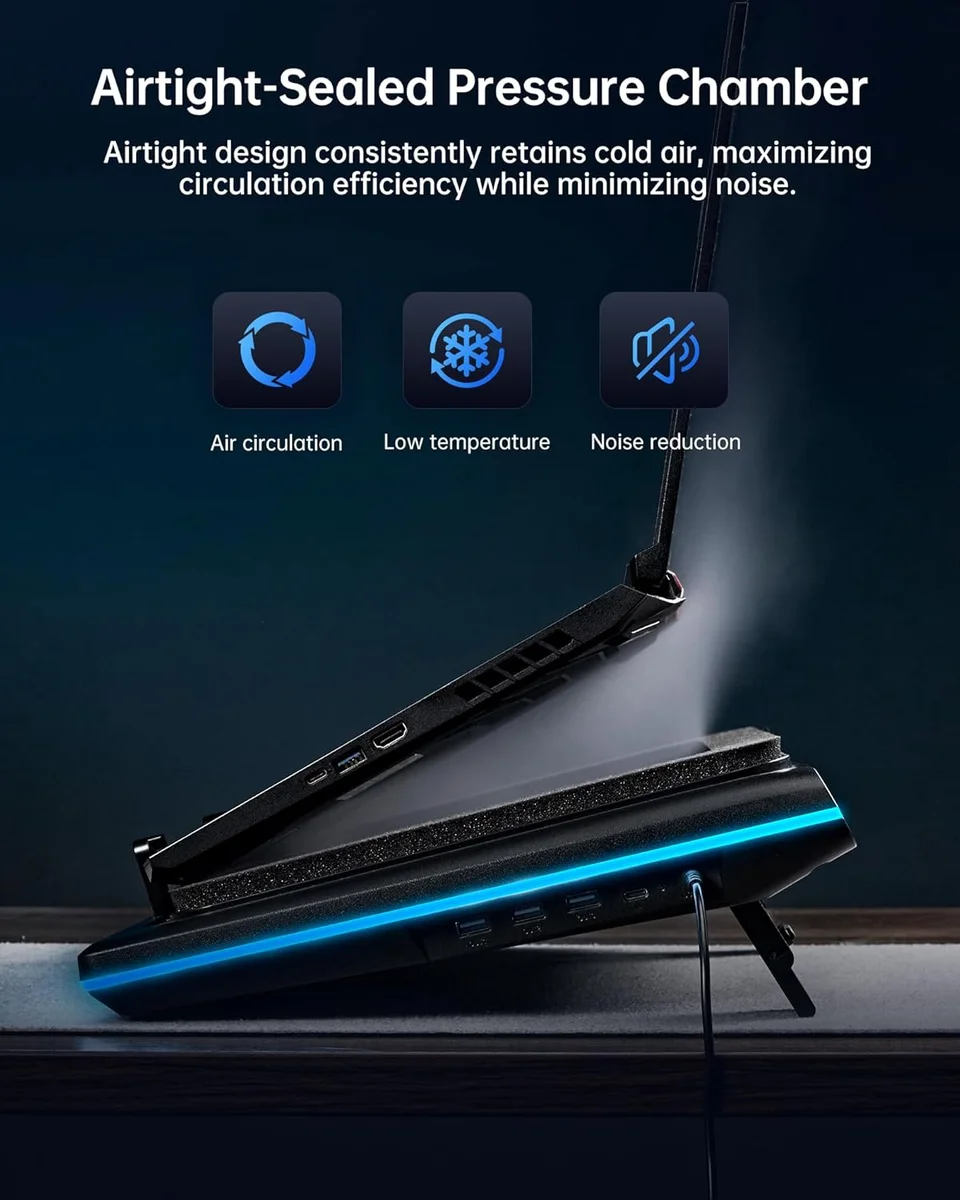

Most laptop cooling pads share the same fundamental design flaw: their fans blow air against the bottom of your laptop's plastic shell, hoping some of it finds an intake vent. The llano V12 Ultra doesn't play that game. It uses a memory foam ring that creates an airtight seal against your laptop's underside, then forces filtered air through a 5.5-inch centrifugal fan directly into the actual intake vents.

BEST
llano V12 Ultra
llano V12 Ultra cooling pad with laptop elevated and software control UI visible on screen

Most laptop cooling pads share the same fundamental design flaw: their fans blow air against the bottom of your laptop's plastic shell, hoping some of it finds an intake vent. The llano V12 Ultra doesn't play that game. It uses a memory foam ring that creates an airtight seal against your laptop's underside, then forces filtered air through a 5.5-inch centrifugal fan directly into the actual intake vents.

Best for:
  • Your gaming laptop throttles under long loads
  • Your laptop has bottom intake vents for the foam seal to cover
  • You wear headphones while you play, so fan noise won't bother you
  • You want USB 3.0 ports and fan control from Windows software
  • Your laptop is 15.6 to 19 inches
VALUE
KLIM Ultimate
KLIM Ultimate RGB laptop cooling pad top view, with its single 200 mm fan glowing blue behind the metal mesh grid and a rainbow RGB LED rim

The KLIM Ultimate is the quietest pad TechRadar's Josh Russell has measured, and it still does real cooling work. In his 15-minute 3DMark Steel Nomad run on an Acer Predator Helios 300, the laptop alone heated up by 31.9°C. On the Ultimate it rose 15.5°C, about half as much, while the pad's single 200 mm fan read 36 dB at head height. The two llano turbo pads cooled harder, but they ran at 64.5 to 71 dB.

Best for:
  • You want lower temperatures without a loud fan
  • You work or game in a shared room
  • You want a pad that runs off a USB port with no power brick
  • You want a 5-year warranty
  • Your laptop is 17 inches or smaller
04

Specifications

Spec llano V12 Ultra KLIM Ultimate
Fan 1 x 140 mm turbofan 1 x 200 mm
Max RPM 2800 RPM 750 RPM
Design Sealed foam turbo Open metal grid
Noise 27 to 70 (rated) 36 dB
Laptop Size 15.6 to 19 in Up to 17 in
Heights 3 levels 4 levels
USB Ports 3 x USB 3.0 None listed
Power 36 W adapter USB
Weight 4 lb 2.16 lb
Warranty 1 year 5 years
Read the full Laptop Cooling Pads review
